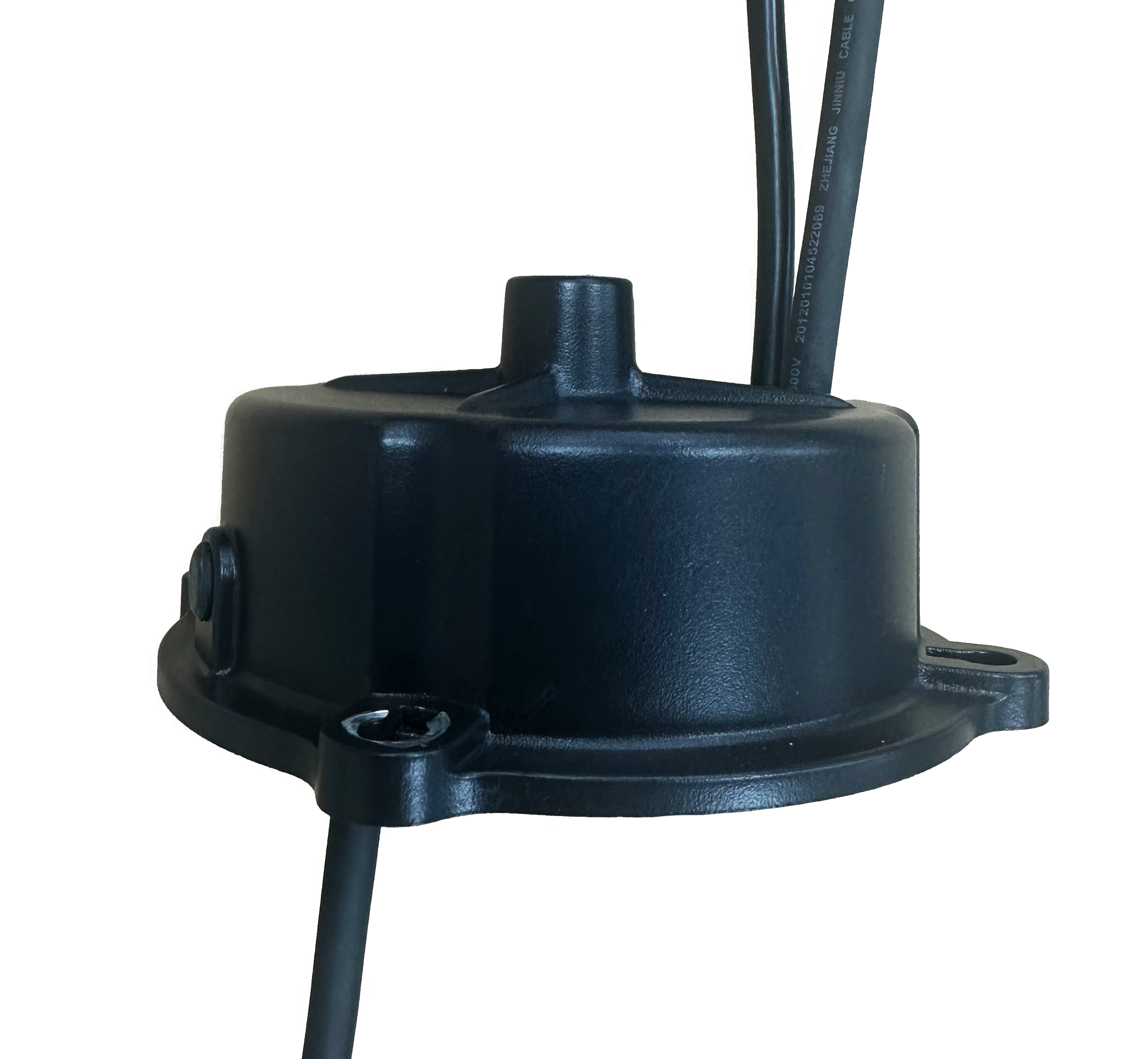

ZH-HBG-C150-80V
Product Features
Power：150W
Series：CC LED Driver
Application： Industrial light, High bay light, Horticulture light
Certificate：UL, RoHS, CE,TUV,COC (Certificate of Conformity),PSE, and SAA.
Warranty：5 years
Product Description
CC LED Driver
Features
Parameters
Reference
Packing
Efficiency up to 91%
Dimming: DALI-2, 60-80V, PWM, Resistor
Dim-to-Off
Surge protection: CM: 4kV, DM: 4kV
Auxiliary Power: 12V/0.3A
Standby Power<0.5W
IP65
TYPE HL, suitable for hazardous locations
Protections: SCP/OTP/OPP
Warranty: 5 years
| Reted Input Voltage | 60-80Vac |
| Max. Pout | 150W |
| Dimension | φ113*55（mm） |
Model | Full Power | Vout Range(Vdc) | Output Current(A) | Max.Pout(W) | PF(Typ.) | Eff.(Typ.) | SIZE(L×W)(mm) | Surge Protection |
| H-HBG-C150-80V | 150 | 60-80 | 1.72 | 150 | 0.91 | 0.9 | 113×55 | 3KV/4KV |
| QTY | 14 PCS |
| Net Weight/PC | 0.581kg |
| Gross Weight/Carton | 9.12kg |
