ZH-HBG-240NLIV-260*
Product Features
Power：240W
Series：CC LED Driver
Application： Industrial light, High bay light, Horticulture light
Certificate：UL, RoHS, CE,TUV,COC (Certificate of Conformity),PSE, and SAA.
Warranty：5 years
Product Description

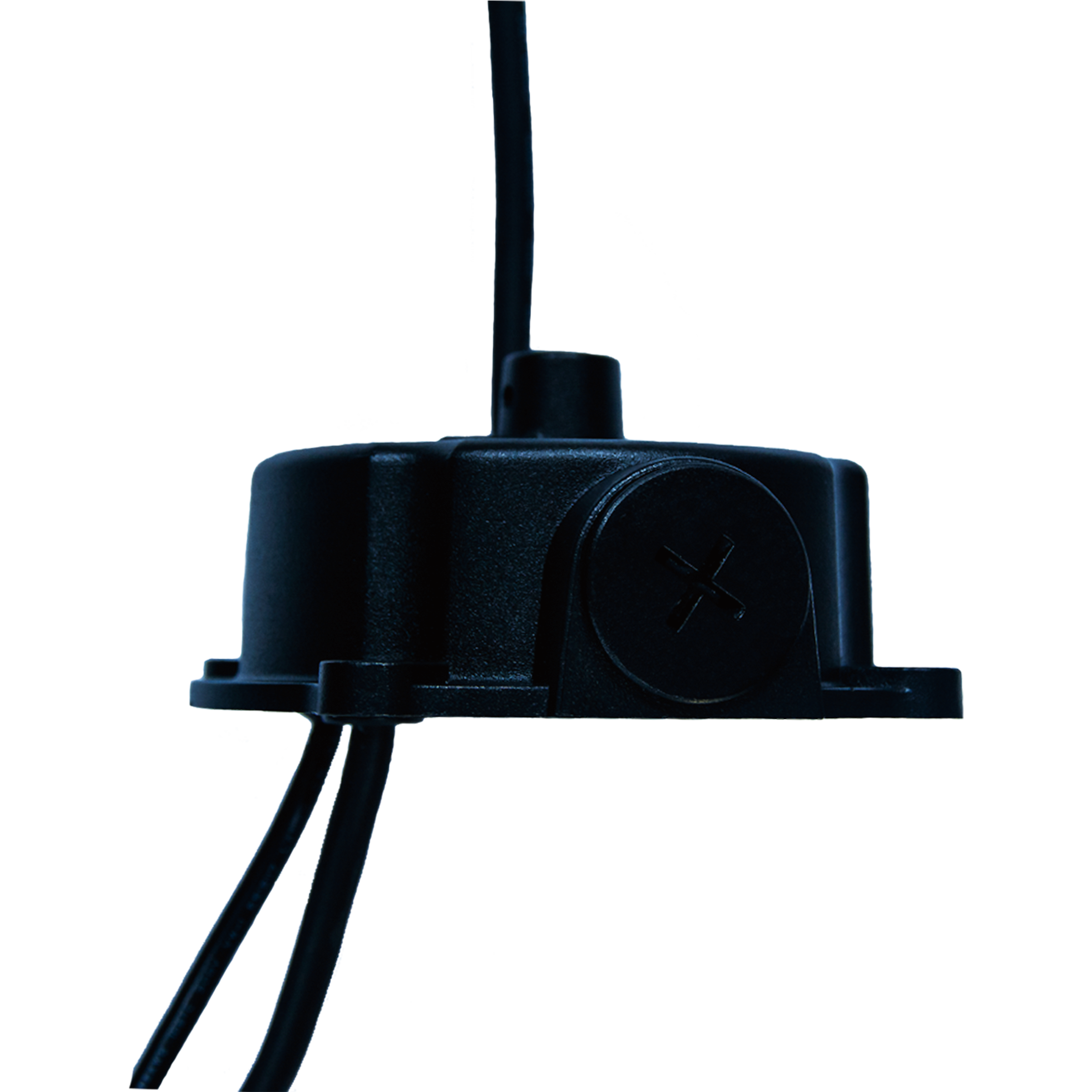

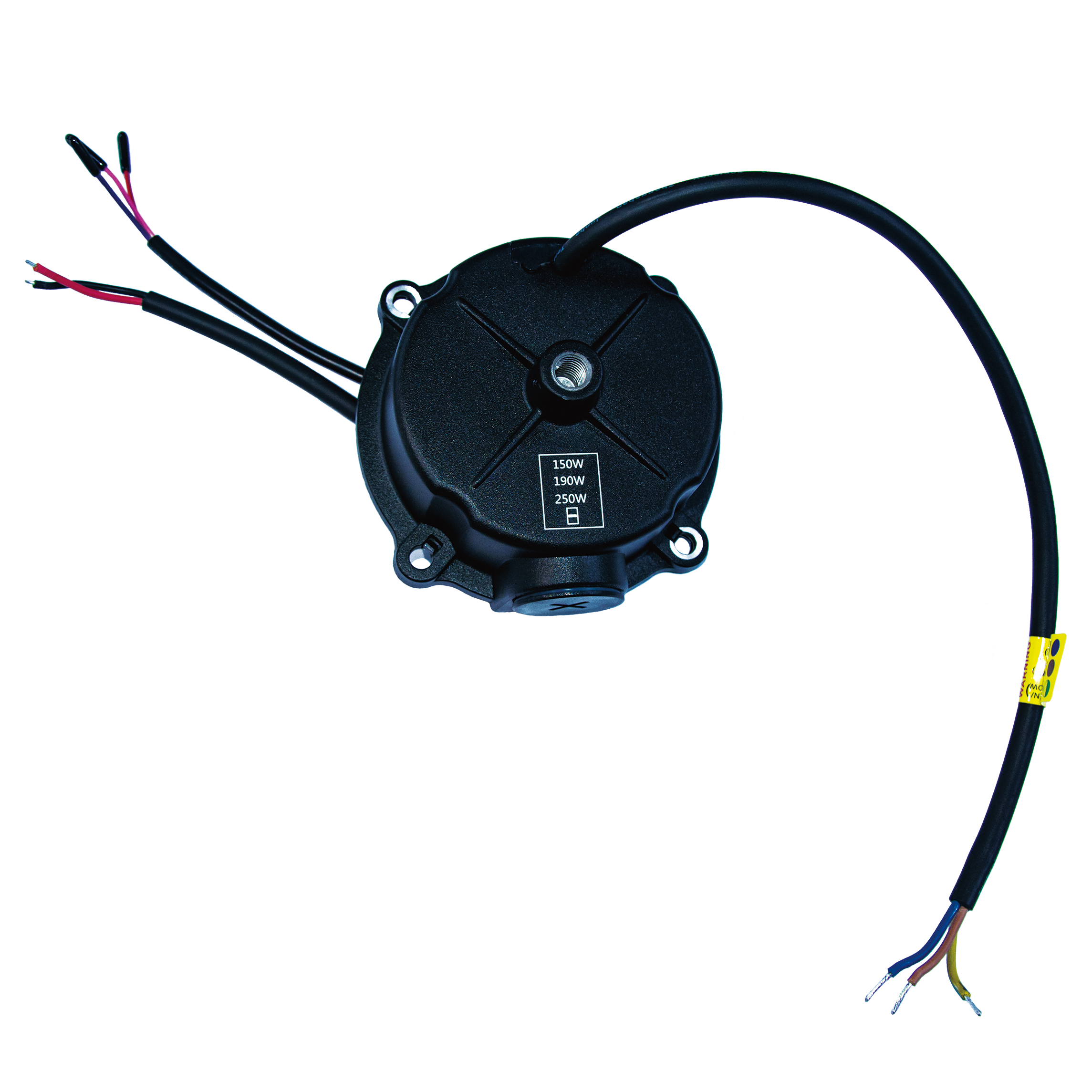

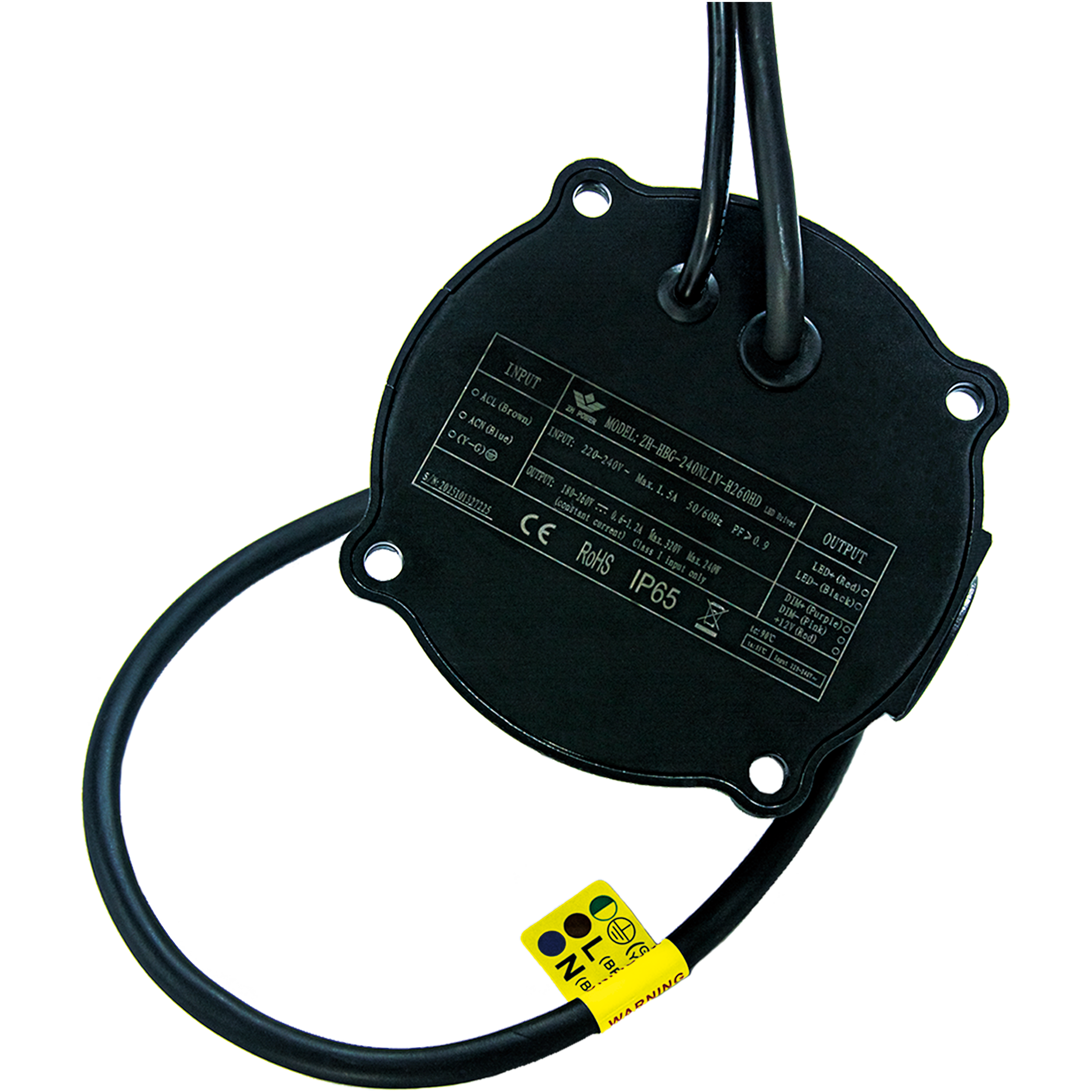

CC LED Driver
Features
Parameters
Reference
Packing
Efficiency up to 95%
Dimming: DALI-2, 180-260V, PWM, Resistor
Dim-to-Off
Surge protection: CM: 5kV, DM: 6kV
Auxiliary Power: 12V/0.3A
Standby Power<0.5W
IP65
TYPE HL, suitable for hazardous locations
Protections: SCP/OTP/OPP
Warranty: 5 years
| Reted Input Voltage | 60-80Vac |
| Max. Pout | 240W |
| Dimension | φ113*55（mm） |
Model | Full Power | Vout Range(Vdc) | Output Current(A) | Max.Pout(W) | PF(Typ.) | Eff.(Typ.) | SIZE(L×W)(mm) | Lighting Protection |
| ZH-HBG-240NLIV-260* | 240 | 180-260 | 240 | 0.6-1.2 | 0.93 | 0.95 | 113×55 | 5KV/6KV |
| QTY | 14 pcs |
| Net Weight/PC | 0.581kg |
| Gross Weight/Carton | 9.12kg |
