HBG-NLIII
Application scenario Lamps

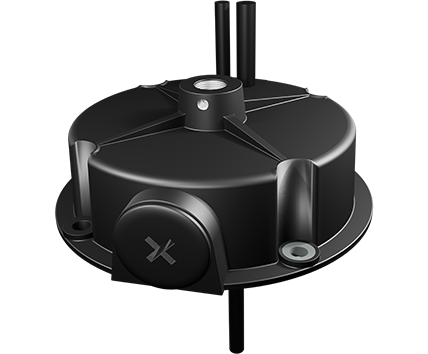

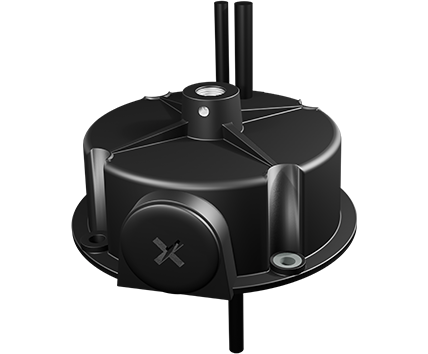

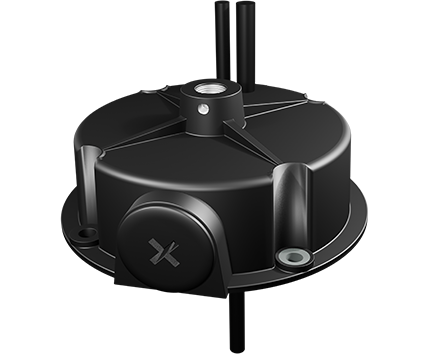

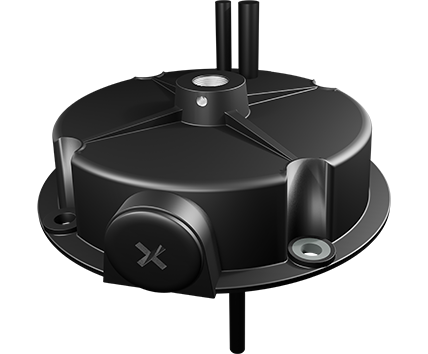

Full lnput Voltage Non-isolated UFO High Bay LED Driver
Input Voltage:120~277Vac/120~347Vac/277-480Vac
Efficiency up to 95%
Non-isolated design,Flicker free
Auxiliary 12V/0.2A optional
3-IN-1 Isolated dimming:0-10V,PWM,Resistor
Dip-switch for Power & CCT adjustment(120~320W)
IP65
5years warranty
Parameters
Certification
Features
AC120~277V
| Model | Output voltage(Vdc) | Output current(A) | Output power(W) | Efficiency | Power Factor | Dimension(L×W×H)(mm) | Surge DM/CM |
| ZH-HBG-60NLIII-260* | 180-260 | 0.2-0.32 | 60 | ≥92% | ≥95% | 113×55 | 5KV/6KV |
| ZH-HBG-120NLIII-260* | 180-260 | 0.3-0.6 | 120 | ≥94% | ≥95% | 128×55 | 5KV/6KV |
| ZH-HBG-160NLIII-260* | 180-260 | 0.4-0.8 | 160 | ≥94% | ≥95% | 128×55 | 5KV/6KV |
| ZH-HBG-200NLIII-260* | 180-260 | 0.5-1.0 | 200 | ≥94% | ≥95% | 128×55 | 5KV/6KV |
| ZH-HBG-240NLIII-260* | 180-260 | 0.6-1.2 | 240 | ≥94% | ≥95% | 128×55 | 5KV/6KV |
| ZH-HBG-320NLIII-260* | 180-260 | 0.8-1.6 | 320 | ≥94% | ≥95% | 150.5×59.5 | 5KV/6KV |
| ZH-HBG-500NLIII-260* | 180-260 | 1.3-2.5 | 500 | ≥95% | ≥95% | 182.5×60.5 | 6KV/6KV |
AC120~347V
| Model | Output voltage(Vdc) | Output current(A) | Output power(W) | Efficiency | Power Factor | Dimension(L×W×H)(mm) | Surge DM/CM |
| ZH-HBG-120NLIII-P260* | 180-260 | 0.3-0.6 | 120 | ≥94% | ≥95% | 128×55 | 5KV/6KV |
| ZH-HBG-160NLIII-P260* | 180-260 | 0.4-0.8 | 160 | ≥94% | ≥95% | 128×55 | 5KV/6KV |
| ZH-HBG-200NLIII-P260* | 180-260 | 0.5-1.0 | 200 | ≥94% | ≥95% | 128×55 | 5KV/6KV |
| ZH-HBG-240NLIII-P260* | 180-260 | 0.6-1.2 | 240 | ≥94% | ≥95% | 128×55 | 5KV/6KV |
| ZH-HBG-320NLIII-P260* | 180-260 | 0.8-1.6 | 320 | ≥94% | ≥95% | 150.5×59.5 | 5KV/6KV |
| ZH-HBG-500NLIII-P260* | 180-260 | 1.3-2.5 | 500 | ≥95% | ≥95% | 182.5×60.5 | 6KV/6KV |
AC277~480V
| Model | Output voltage(Vdc) | Output current(A) | Output power(W) | Efficiency | Power Factor | Dimension(L×W×H)(mm) | Surge DM/CM |
| ZH-HBG-120NLIII-Y260* | 180-260 | 0.3-0.6 | 120 | ≥94% | ≥95% | 128×55 | 5KV/6KV |
| ZH-HBG-160NLIII-Y260* | 180-260 | 0.4-0.8 | 160 | ≥94% | ≥95% | 128×55 | 5KV/6KV |
| ZH-HBG-200NLIII-Y260* | 180-260 | 0.5-1.0 | 200 | ≥94% | ≥95% | 128×55 | 5KV/6KV |
| ZH-HBG-240NLIII-Y260* | 180-260 | 0.6-1.2 | 240 | ≥94% | ≥95% | 128×55 | 5KV/6KV |
| ZH-HBG-320NLIII-Y260* | 180-260 | 0.8-1.6 | 320 | ≥94% | ≥95% | 150.5×59.5 | 5KV/6KV |
| ZH-HBG-500NLIII-Y260* | 180-260 | 1.3-2.5 | 500 | ≥95% | ≥95% | 182.5×60.5 | 6KV/6KV |
| Note: |
| The default mode means no optional functions(basic model) |
| *=B means external 3 in 1 dimming function(0-10V/PWM/Resistance) |
| *=C means CCT+power adjustable function |
| *=D means power adjustable function |
| *=E means CCT adjustable function |
| *=H means 0-10V dimming+auxiliary power supply(+12V)function |
Certification
Efficiency up to 97%
Isolated dimming: 0-10V, PWM, Resistor
Optional aux: 12V/0.2A
Dim to off
Standby Power<0.5W
Protections: SCP/OTP/OVP/UVP
Compatible with intelligent emergency controls
Wide output voltage range, Dip power range programmable
IP65
Surge protection: CM: 5kV,DM: 6kV
Long lifetime
Warranty: 5 years
