LVP
Application scenario Lamps

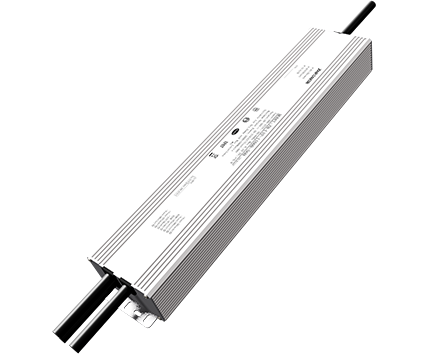

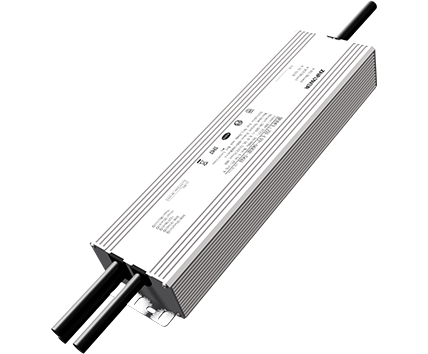

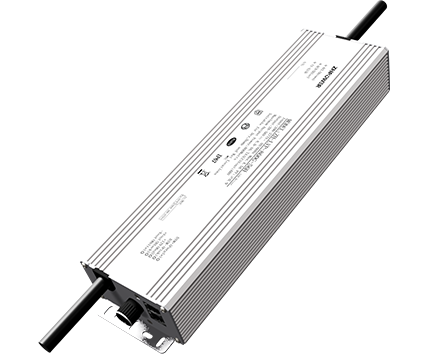

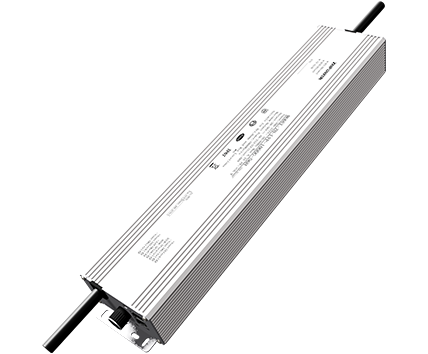

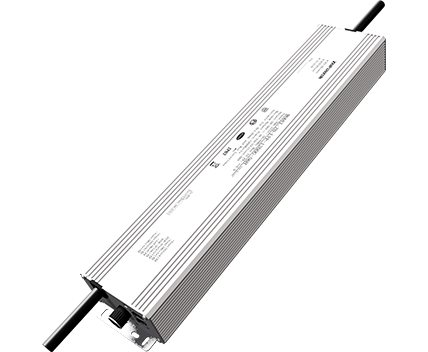

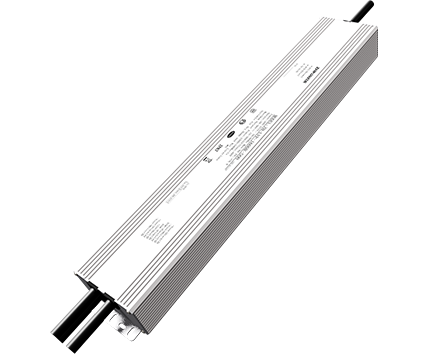

Isolated LED Driver For Horticulture Light
Product description
Input Voltage:120~277Vac/200~277Vac/277~480Vac
Efficiency up to 95%
Isolation design,Flicker free
Auxiliary 12V/0.2A optional
3-IN-1 Isolated dimming:0-10V,PWM,Resistor
IP67
5 years warranty
AC120~277V
| Model | Output voltage(Vdc) | Output current(A) | Output power(W) | Efficiency | Power Factor | Dimension(L×W×H)(mm) | Surge DM/CM |
| ZH-LVP600H-56* | 28-56 | 6.7-13.5 | 600 | ≥95% | ≥95% | 307 × 89 × 48 | 6KV/10KV |
| ZH-LVP800H-56* | 28-56 | 8.0-16.7 | 800 | ≥95% | ≥95% | 415 × 89 × 48 | 6KV/10KV |
| ZH-LVP1000H-56* | 28-56 | 16.0-21.0 | 1000 | ≥95% | ≥95% | 450 × 89 × 48 | 6KV/10KV |
| ZH-LVP1200H-56* | 28-56 | 16.0-24.0 | 1200 | ≥95% | ≥95% | 450 × 89 × 48 | 6KV/10KV |
AC200~277V
| Model | Output voltage(Vdc) | Output current(A) | Output power(W) | Efficiency | Power Factor | Dimension(L×W×H)(mm) | Surge DM/CM |
| ZH-LVP600G-56* | 28-56 | 6.7-13.5 | 600 | ≥95% | ≥95% | 307 × 89 × 48 | 6KV/10KV |
| ZH-LVP800G-56* | 28-56 | 8.0-16.7 | 800 | ≥95% | ≥95% | 307 × 89 × 48 | 6KV/10KV |
| ZH-LVP1000G-56* | 28-56 | 16.0-21.0 | 1000 | ≥95% | ≥95% | 415 × 89 × 48 | 6KV/10KV |
| ZH-LVP1200G-56* | 28-56 | 16.0-24.0 | 1200 | ≥95% | ≥95% | 450 × 89 × 48 | 6KV/10KV |
| ZH-LVP1500G-56* | 28-56 | 16.0-30.0 | 1500 | ≥95% | ≥95% | 530 × 89 × 48 | 6KV/10KV |
AC277~480V
| Model | Output voltage(Vdc) | Output current(A) | Output power(W) | Efficiency | Power Factor | Dimension(L×W×H)(mm) | Surge DM/CM |
| ZH-LVP600P-56* | 28-56 | 6.7-13.5 | 600 | ≥95% | ≥95% | 307 × 89 × 48 | 6KV/10KV |
| ZH-LVP800P-56* | 28-56 | 8.0-16.7 | 800 | ≥95% | ≥95% | 415 × 89 × 48 | 6KV/10KV |
| ZH-LVP1000P-56* | 28-56 | 16.0-21.0 | 1000 | ≥95% | ≥95% | 450 × 89 × 48 | 6KV/10KV |
| ZH-LVP1200P-56* | 28-56 | 16.0-24.0 | 1200 | ≥95% | ≥95% | 450 × 89 × 48 | 6KV/10KV |
| ZH-LVP1500P-56* | 28-56 | 16.0-30.0 | 1500 | ≥95% | ≥95% | 530 × 89 × 48 | 6KV/10KV |
Dual Output,AC200~277V
| Model | Output voltage(Vdc) | Output current(A) | Output power(W) | Efficiency | Power Factor | Dimension(L×W×H)(mm) | Surge DM/CM |
| ZH-LVP700R-56* | 28-56 | 6.7-13.5 | 600+100 | ≥95% | ≥95% | 307 × 89 × 48 | 6KV/10KV |
| ZH-LVP900R-56* | 28-56 | 8.0-16.7 | 800+100 | ≥95% | ≥95% | 435 × 89 × 48 | 6KV/10KV |
| ZH-LVP1100R-56* | 28-56 | 16.0-21.0 | 1000+100 | ≥95% | ≥95% | 466 × 89 × 48 | 6KV/10KV |
| ZH-LVP1300R-56* | 28-56 | 16.0-24.0 | 1200+100 | ≥95% | ≥95% | 530 × 89 × 48 | 6KV/10KV |
| ZH-LVP1600R-56* | 28-56 | 16.0-30.0 | 1500+100 | ≥95% | ≥95% | 577 × 89 × 48 | 6KV/10KV |
Dual Output,AC277~480V
| Model | Output voltage(Vdc) | Output current(A) | Output power(W) | Efficiency | Power Factor | Dimension(L×W×H)(mm) | Surge DM/CM |
| ZH-LVP700Y-56* | 28-56 | 6.7-13.5 | 600+100 | ≥95% | ≥95% | 307 × 89 × 48 | 6KV/10KV |
| ZH-LVP900Y-56* | 28-56 | 8.0-16.7 | 800+100 | ≥95% | ≥95% | 415 × 89 × 48 | 6KV/10KV |
| ZH-LVP1100Y-56* | 28-56 | 16.0-21.0 | 1000+100 | ≥95% | ≥95% | 450 × 89 × 48 | 6KV/10KV |
| ZH-LVP1300Y-56* | 28-56 | 16.0-24.0 | 1200+100 | ≥95% | ≥95% | 530 × 89 × 48 | 6KV/10KV |
| ZH-LVP1600H-56* | 28-56 | 16.0-30.0 | 1500+100 | ≥95% | ≥95% | 577 × 89 × 48 | 6KV/10KV |
| Note: |
| The default mode means no optional functions(basic model) |
| *=B means external 3 in 1 dimming function(0-10V/PWM/Resistance) |
| *=H means 0-10V dimming+auxiliary power supply(+12V)function |
