LVG
Application scenario Lamps

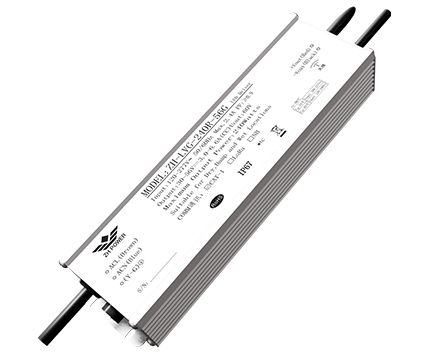

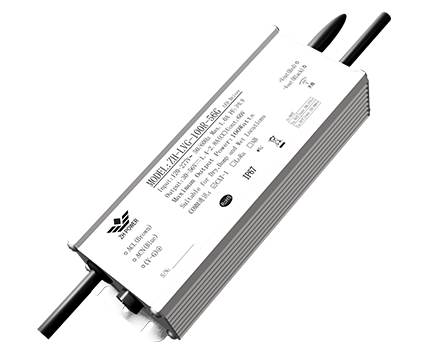

4G Outdoor Lighting LED Driver
Product description
Input Voltage:120~277Vac
Efficiency up to 92%
Isolation dual-stage design,Flicker free
Auxiliary 12V/0.2A optional
No wiring required,easy to install and manage
4G fullnetwork access,remote single /group control,remote dimming,data analysis,fault warning
IP67
5 years warranty
| Model | Output voltage(Vdc) | Output current(A) | Output power(W) | Efficiency | Power Factor | Dimension(L×W×H)(mm) | Surge DM/CM |
| ZH-LVG75R-56* | 30-56 | 1.0-2.1 | 75 | ≥87% | ≥95% | 154×65×35 | 6KV/10KV |
| ZH-LVG100R-56* | 30-56 | 1.4-2.8 | 100 | ≥90% | ≥95% | 154×65×35 | 6KV/10KV |
| ZH-LVG150R-56* | 30-56 | 2.0-4.2 | 150 | ≥91% | ≥95% | 217×68×39 | 6KV/10KV |
| ZH-LVG240R-56* | 30-56 | 3.0-6.6 | 240 | ≥92% | ≥95% | 217×68×39 | 6KV/10KV |
| ZH-LVG320R-56* | 30-56 | 4.0-8.8 | 320 | ≥92% | ≥95% | 247×89×43 | 6KV/10KV |
| Note: |
| The default mode means no optional functions(basic model) |
| *=B means external 3 in 1 dimming function(0-10V/PWM/Resistance) |
| *=H means 0-10V dimming+auxiliary power supply(+12V)function |
