LVN
Application scenario Lamps
Outdoor Lighting LED Driver
Product description
Input Voltage:100~277Vac
Efficiency up to 91%
Dual-stage circuit,Flicker free
Auxiliary 12V/0.2A optional,Dimming off
3-IN-1 Isolated dimming:0-10V,PWM,Resistor
IP67
5years warranty
| Model | Output voltage(Vdc) | Output current(A) | Output power(W) | Efficiency | Power Factor | Dimension(L×W×H)(mm) | Surge DM/CM |
| ZH-LVN30-54* | 25-54 | 0.5-0.9 | 30 | ≥89% | ≥95% | 104×65×35 | 5KV/5KV |

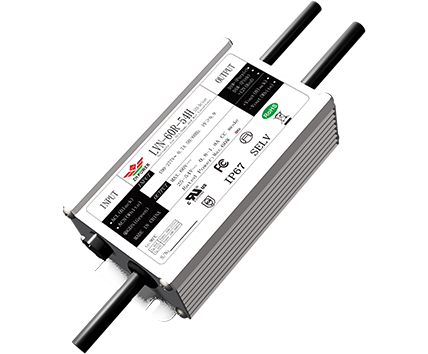

| ZH-LVN60-54* | 25-54 | 0.8-1.8 | 60 | ≥90% | ≥95% | 104×65×35 | 5KV/5KV |

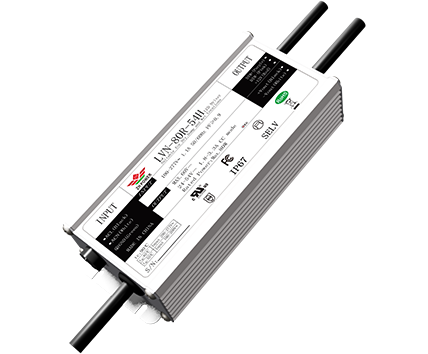

| ZH-LVN80-54* | 24-54 | 1.8-3.3 | 80 | ≥90% | ≥95% | 139×65×35 | 5KV/10KV |
| ZH-LVN120-54* | 24-54 | 1.8-3.3 | 120 | ≥90% | ≥95% | 139×65×35 | 5KV/10KV |

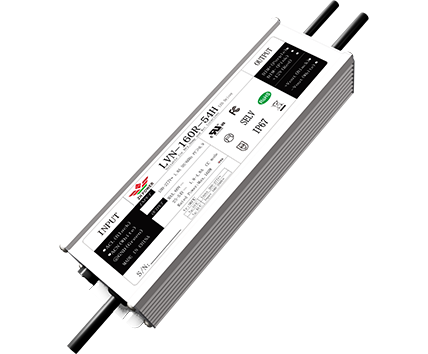

| ZH-LVN160-54* | 25-54 | 1.8-4.8 | 160 | ≥91% | ≥95% | 207×68×39 | 5KV/10KV |

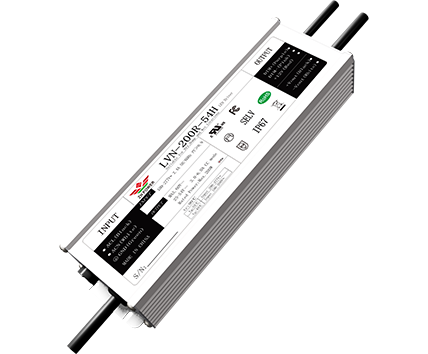

| ZH-LVN200-54* | 25-54 | 3.0-6.0 | 200 | ≥91% | ≥95% | 207×68×39 | 5KV/10KV |
| ZH-LVN240-54* | 25-54 | 2.5-6.6 | 240 | ≥92% | ≥95% | 207×68×39 | 5KV/10KV |

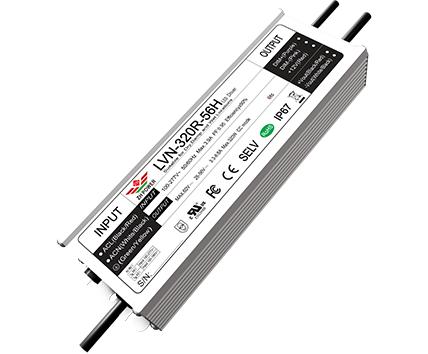

| ZH-LVN320-54* | 28-54 | 3.3-8.8 | 320 | ≥92% | ≥95% | 247×89×43 | 5KV/10KV |
| Note: |
| The default mode means no optional functions(basic model) |
| *=B means external 3 in 1 dimming function(0-10V/PWM/Resistance) |
| *=H means 0-10V dimming+auxiliary power supply(+12V)function |
Certification
