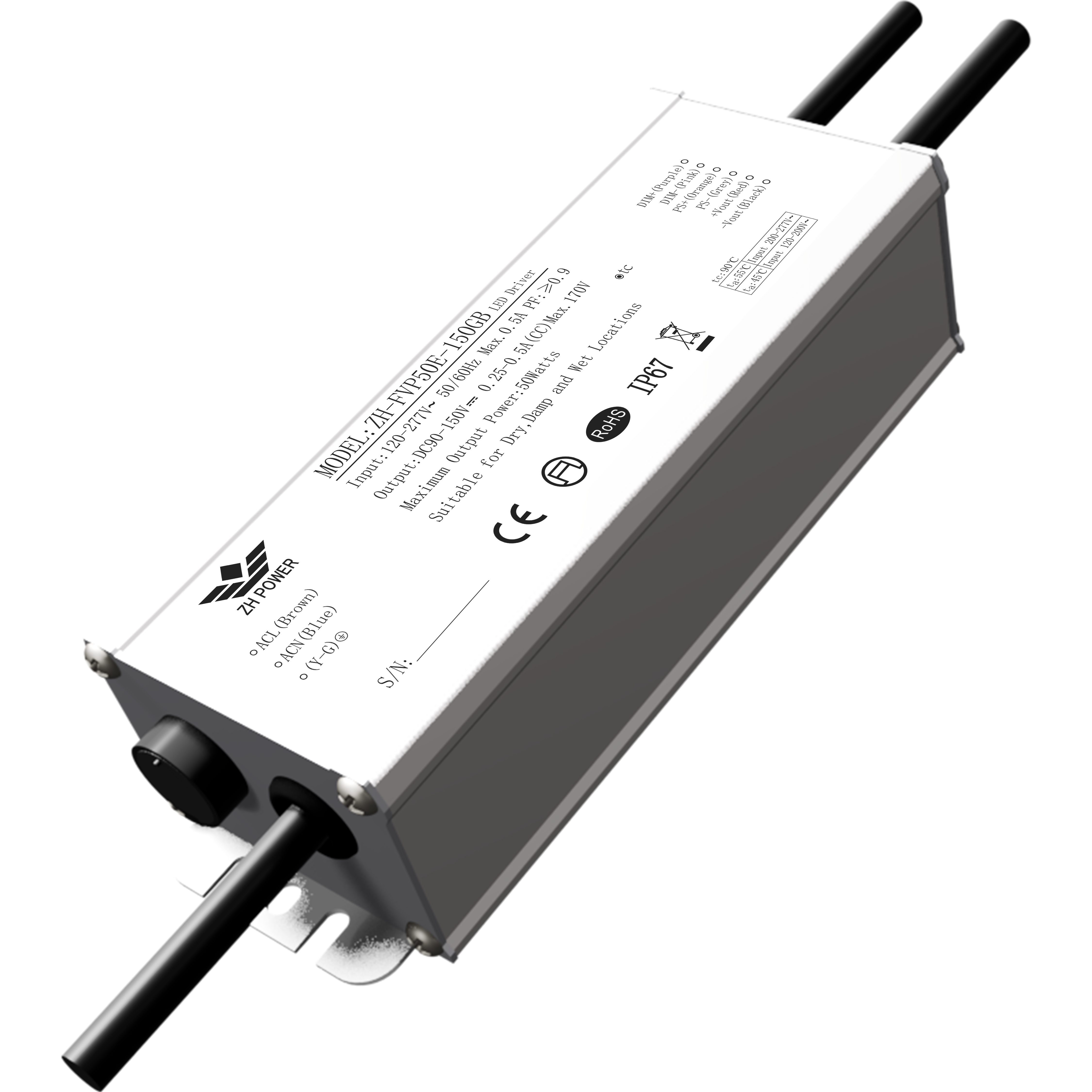

ZH-FVP50E-150*
Product Features
Power：50W
Series：CC LED Driver
Application：High Pole light, High bay light, Stadium light, Horticulture light, Street light, Fish light
Certificate： CE, CB, CTUVUS
Warranty：5 years
Product Description
CC LED Driver
Features
Parameters
Packing
Reference
Efficiency up to 92%
Dimming: DALI-2, 120-347Vac, PWM, Resistor
Dim-to-Off
Surge protection: CM: 4kV, DM: 6kV
Auxiliary Power: 12V/0.3A
Standby Power<0.5W
IP65
TYPE HL, suitable for hazardous locations
Protections: SCP/OTP/OPP
Warranty: 5 years
| Reted Input Voltage | High Voltage |
| Max. Pout | 50 W |
| Dimension | φ110*45*32（mm） |
| QTY | 20 PCS |
| Net Weight/PC | 8.68kg/pcs |
| Gross Weight/Carton | 7.43kg/packge |
Model | Full Power | Vout Range(Vdc) | Output Current(A) | Max.Pout(W) | PF(Typ.) | Eff.(Typ.) | SIZE(L×W)(mm) | Surge protection |
| ZH-FVP50E-150* | 50 | 90-150 | 0.25-0.5 | 30 | 0.92 | 0.95 | 110×45×32 | 4KV/6KV |
